ADJUSTABLE TAP & REAMER WRENCHES

Body Hot drop Forged from Selected Carbon Steel with Auto Black/Powder Coating finish for long trouble free service.

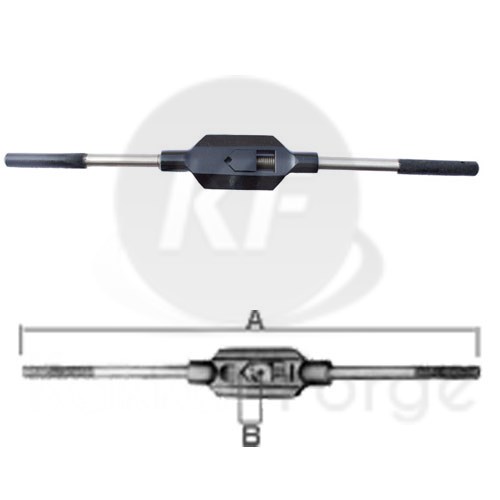

TAP WRENCH - DROP FORGED pOWDER COATED

SIZES
(inches)

SIZES
(mm)

A

B

Approx WEIGHT
(in gms)
1/4 6.25 210 1 to 10 mm 130
3/8 9.50 250 2 to 12 mm 150
1/2 12.50 314 2 to 14 mm 300
3/4 18.75 390 3 to 22 mm 570
1 25 450 4 to 25 mm 900
1 1/8 28.50 470 5 to 29 mm 980

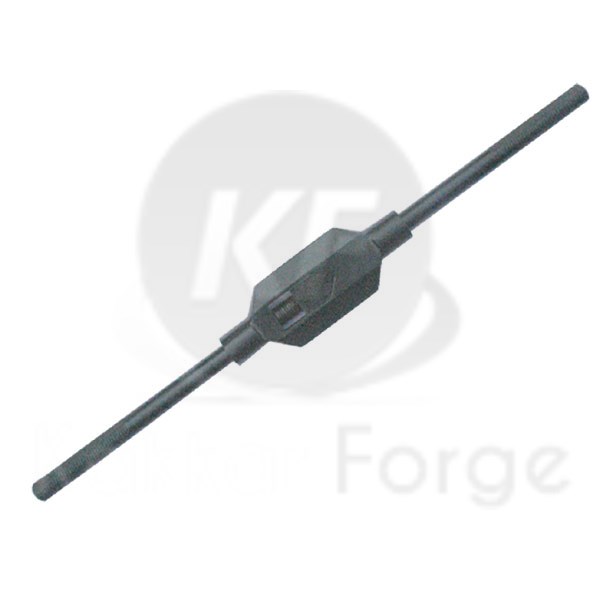

TAP WRENCH - DROP FORGED full pOWDER COATED

SIZES
(inches)

SIZES
(mm)

A

B

Approx WEIGHT
(in gms)
1/4 6.25 210 1 to 10 mm 130
3/8 9.50 250 2 to 12 mm 150
1/2 12.50 314 2 to 14 mm 300
3/4 18.75 390 3 to 22 mm 570
1 25 450 4 to 25 mm 900
1 1/8 28.50 470 5 to 29 mm 980

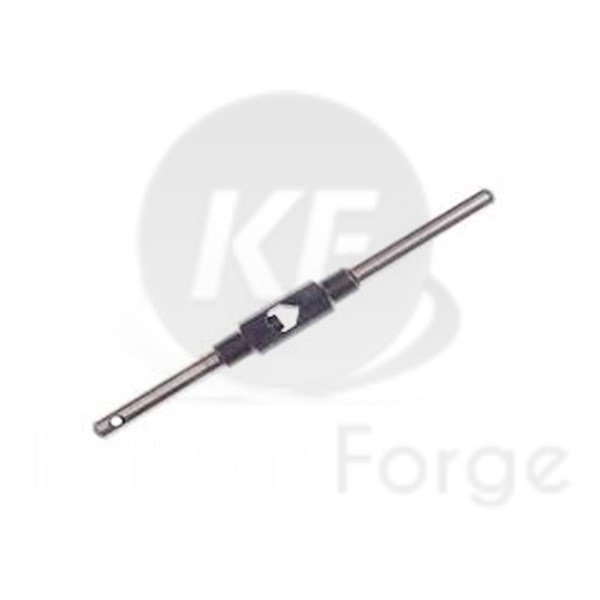

mini TAP WRENCH

SIZES (inches)

 1/4 3/8

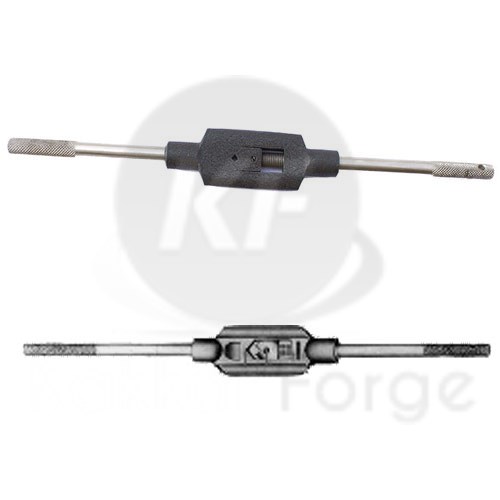

TAP WRENCH - MALLEABLE

SIZES
(inches)

SIZES
(mm)

Hand Taps

1/4 1 to 6 mm 1/16 to 1/4
3/8 3 to 10 mm 1/16 to 3/8
1/2 4 to 12 mm 3/16 to 1/2
3/4 6 to 20 mm 1/4 to 3/4
1 8 to 25 mm 3/8 to 1
1 1/4 10 to 30 mm 5/8 to 1 1/4
1 1/2 12 to 39 mm 3/4 to 1 1/2
2 20 to 50 mm 7/8 to 2
2 1/2 25 to 63 mm 1 to 2 1/2

Available in Polish or Body Painted & Spindle Bright

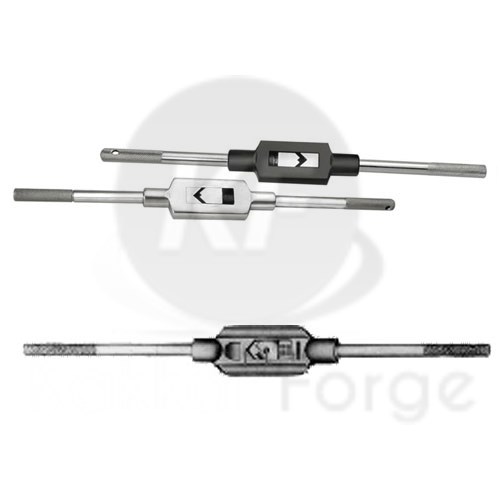

TAP WRENCH - SG IRON

SIZES
(inches)

SIZES
(mm)

Hand Taps

1 1/4 10 to 30 mm 5/8 to 1 1/4
1 1/2 12 to 39 mm 3/4 to 1 1/2
2 20 to 50 mm 7/8 to 2
2 1/2 25 to 63 mm 1 to 2 1/2

Available in Polish or Body Painted & Spindle Bright

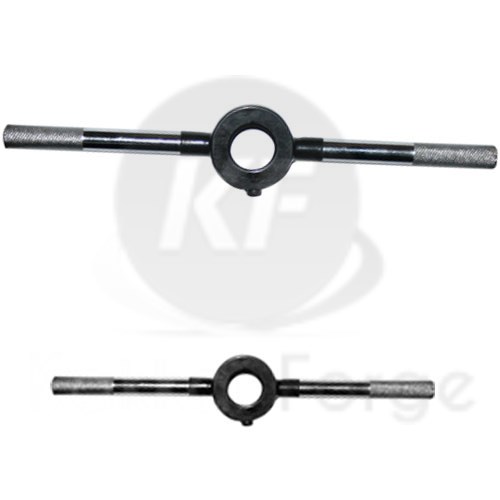

DROP FORGED ROUND DIE HANDLE

SIZES
(inches)

SIZES
(mm)

Total Length

1"  25mm 8 1/2"
1 1/2" 38 mm 12"

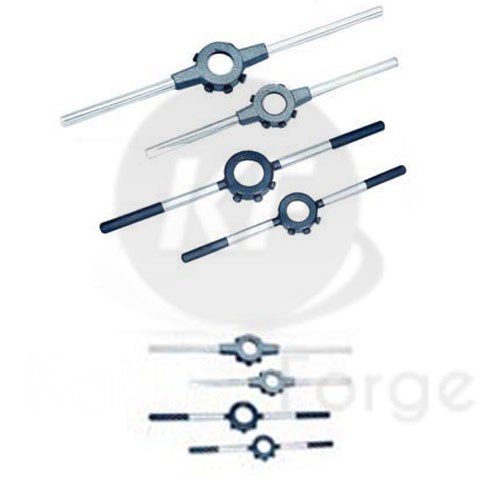

FABRIGATED STEEL ROUND DIE HANDLE & S. G. IRON ROUND DIE HANDLE


SIZES
(inches)

SIZES
(inches)
5/8" 13/16"
13/16" 1"
1" 1 1/2"
1 1/2" 2"
2"
Die Stock For Holding Outside Diameter Dies Comes With Three Grub Screws and A Screws and Spilt Die Opening . Screw This is a Nice Little Die Stock . Body Powder Coated and Spindle Bright.

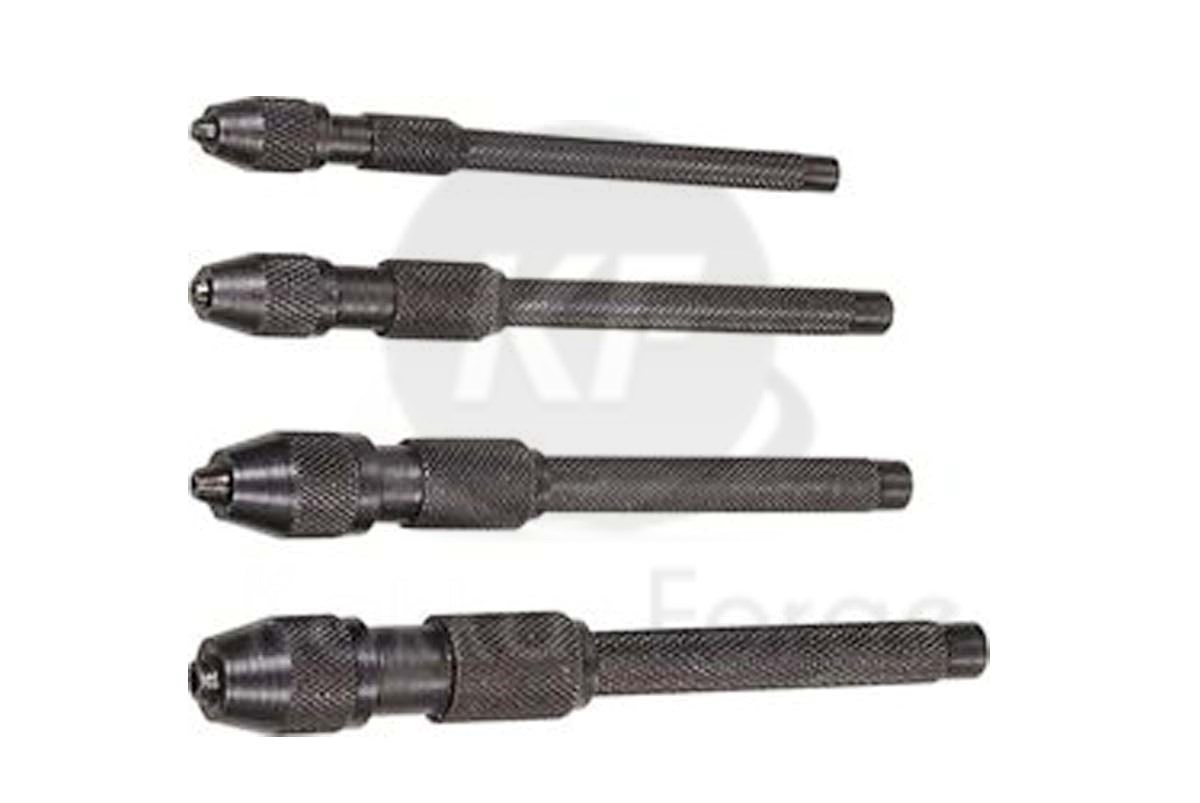

Pin vices

SIZES
(mm)

 0 - 0.8 0.8 - 1.3 1.3 - 3.2 3.2 - 4.5

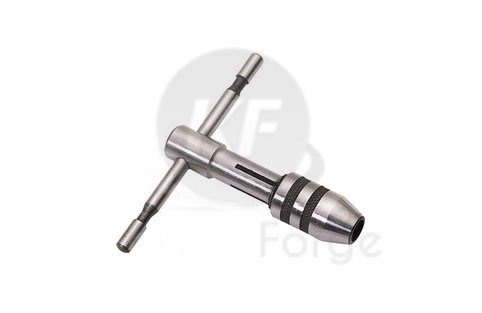

T Type wrench polish finish

Size

 Small Medium Large


T Type wrench (auto black)

A(mm)

B(mm)

C(mm)

D(mm)
3/32 - 3/16 3/16 - 1/4 1/4 - 5/16 5/16 - 1/2
